Ecodeck 50mm Heavy Duty Grid
Prices from £12.00 Per SQM

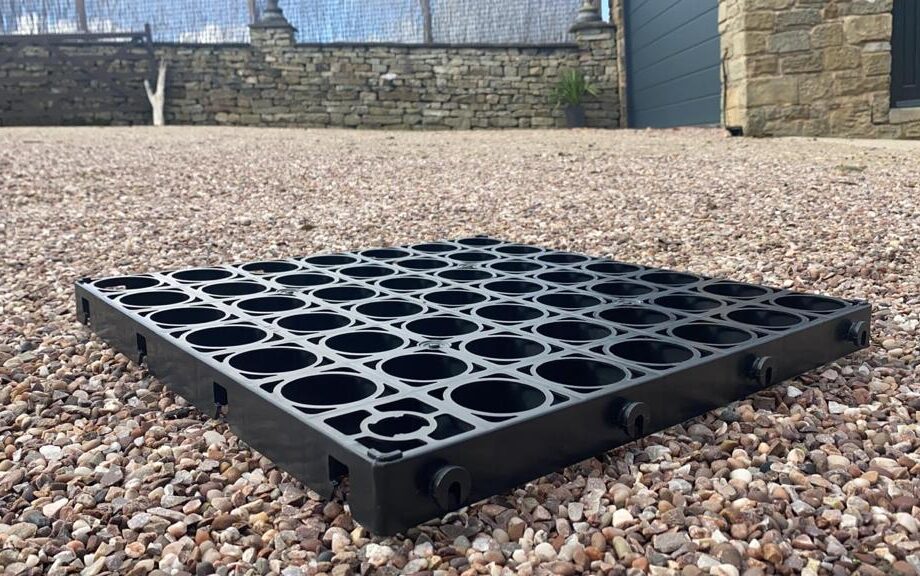

The Ecodeck 50mm Heavy Duty Grid is a high-performance ground reinforcement solution, designed for both commercial and domestic use, offering exceptional stability and durability for a range of applications.
Deliveries are made by National 24-hour express couriers to provide you with a speedy and efficient service.
The time frame for delivery is usually within 3 working days from order point. Saturday/Sunday and Bank Holidays are not classed in those working days.
How much do I need?
Please use our square meter calculator to calculate how many Grids you need for your ground reinforcement project. Please enter the width in metres and the length in metres to find out your desired square meterage. If you require further help and information, please contact our helpful sales team on +44 (0) 1773 875 255 or customerservices@ecodeck.biz.
X
You will need square metres

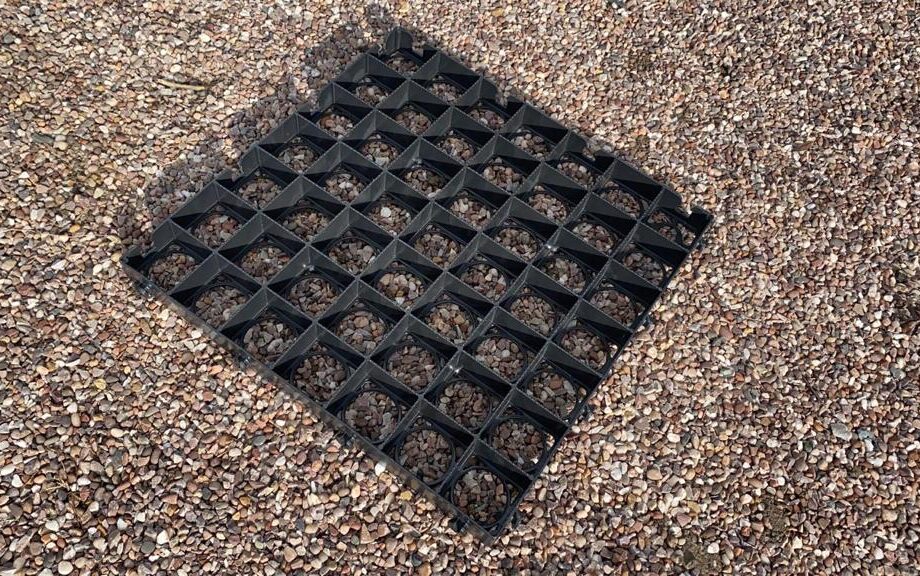

The Ecodeck 50mm Heavy Duty Grid is a reinforced permeable ground stabilisation system. Manufactured in the UK from 100% recycled plastic, this heavy-duty, UV-stable, non-toxic grid provides outstanding load-bearing strength, durability, and permeability. Ideal for both domestic and commercial applications, it offers a sustainable alternative to concrete and tarmac.
Compatible with gravel, stone, grass, soil, and grass seed infill of 3mm–30mm, and compliant with Sustainable Urban Drainage Systems (SuDS) and the Flood & Water Management Act 2010.
Applications include:
- Access roads for plant machinery, lorries, and emergency service lanes (fire and ambulance access routes)
- Driveway grids, grass and gravel parking
- Farming tracks, pathways, ground stabilisation
- Horse paddocks and equestrian surfaces
- Caravan pathways, parking areas, base support
- Shed and building bases
- Gravel, grass pathways and disabled access solutions
- Grass or gravel car parks, temporary and permanent solutions
- Helicopter landing pads
- Buggy paths, golf course paths and grass stabilisation
- Event and marquee flooring solutions
- Anti-storm and flood surface drainage solutions (S.U.D.S compliant)
- Slope and embankment reinforcement
- Melioration ditches
- Grassed garden banks stabilisation
- Garden and landscaping
If you have already purchased one of our products, please activate your warranty here.
Technical Specifications
| Material | 100% recycled, black, non toxic, UV stable PP/PE blend |
|---|---|
| Dimensions | 500mm x 500mm x 50mm |
| Rib wall thickness | 3.5mm |
| Weight/m2 | 5kg |
| No Grids/m2 | 4 |
| Filling | Gravel, Stone, Grass, Grass Seed, Soil, 3mm-30mm |
| Temperature Stability | -50 to +90C |
| Fitting | 4 integrated V force push fit locking connections per side |
| Environmental | Complies with S.U.D.S & Flood & Water Management Act 2010 |
| Country of Manufacture | UK |
| Shipping Details | 208 grids / 52 sqm per pallet 500 tonnes load capacity |
| Vehicle Testing | Tested to withstand vehicles up to 30 tonnes |
| Compression Test | 500 tonne |
| Axle Load | 30 tonnes |
| Extra | Built in anti-migration cell bottom lattice and anti-gravel movement ribs, cell-wall topped anti-slip nodules. Used on slop inclines of in excess of 1 in 4. |
What are S.U.D.S
S.U.D.S infoEcodeck are proud to offer a sustainable solution to SuDS. SuDS are a nature-based solution to drainage problems. They reduce the impact of rainfall, for example by using grassed and other permeable surfaces, creating rain gardens, or building attenuation ponds in order to reduce the potential for surface water or river flooding. The excess rainfall is captured and then slowly filtered into the ground.
How to use
To start you installation Download the easy-to-follow guide to laying the Ecodeck
download Today
